Introduction

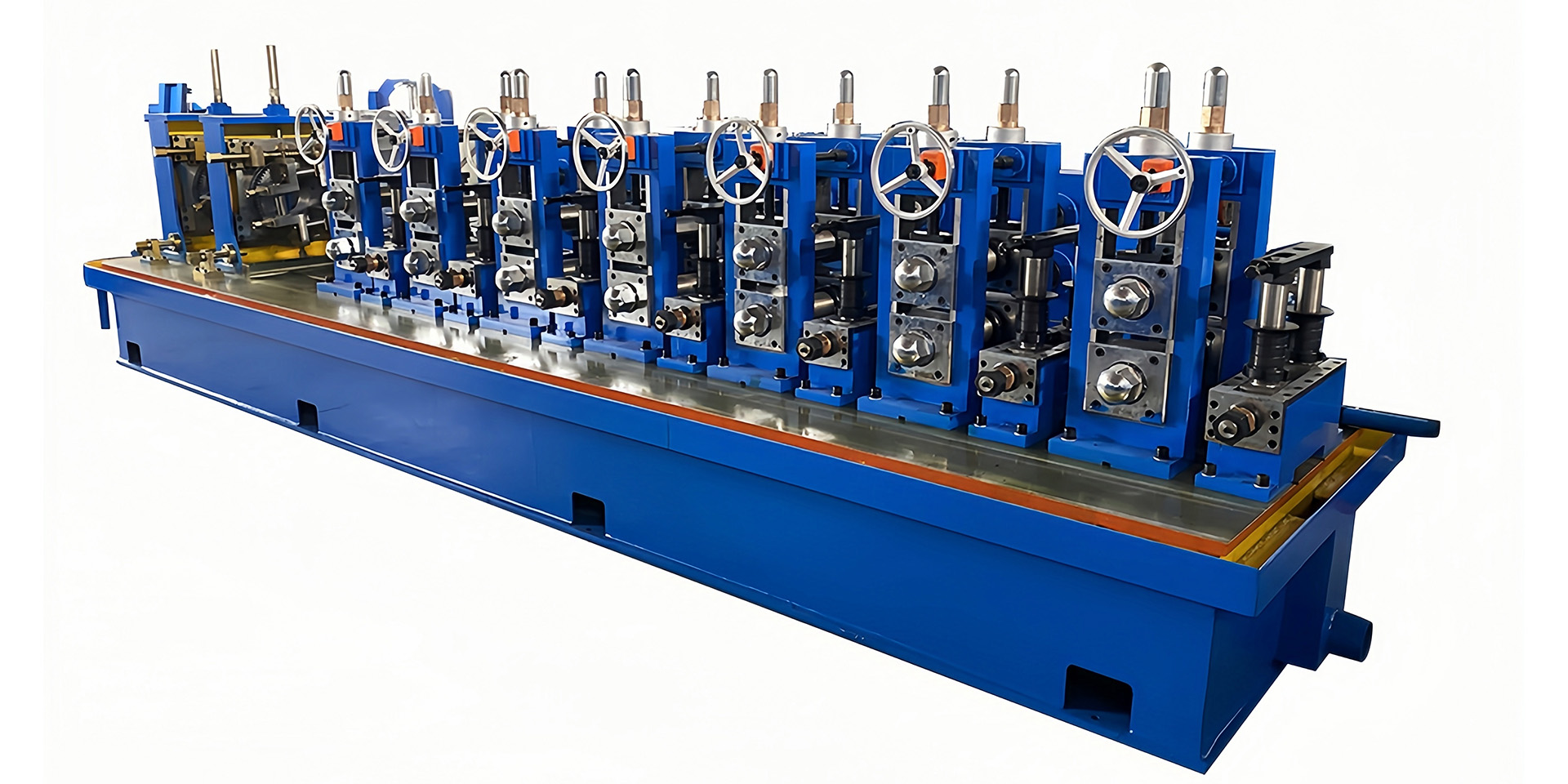

The FX89 and FX114 models are specifically engineered for the production of large-diameter steel tubes, ranging from Φ50 to Φ152mm. These mills are designed to meet the demands of heavy-duty industrial applications, providing exceptional durability, precision, and production capacity.
Production Process Overview
The FX89 and FX114 models are part of our Heavy-Duty Large Pipe Production Lines, specifically designed for the efficient production of large-diameter pipes. The production process includes:
1. Uncoiling: The steel coil is uncoiled in a controlled manner, providing a consistent feed into the production line.
2. Shearing and Welding: The strip edges are precisely sheared and welded, forming a continuous, smooth strip ready for forming.
3. Forming: The strip is shaped into large-diameter pipes using advanced roll forming technology, ensuring structural integrity.
4. Welding: High-frequency welding creates a durable and consistent seam, capable of withstanding high-pressure applications.
5. Sizing: The pipe is sized to exact specifications, ensuring uniform diameter and wall thickness throughout the production run.
6. Cutting: Automated cutting equipment accurately cuts the pipes to the desired lengths, optimizing material use and reducing waste.
7. Final Inspection and Packaging: Each pipe undergoes a rigorous quality inspection before packaging, ensuring it meets all specified standards.
This production process is optimized for heavy-duty applications, making these machines ideal for industries such as oil and gas, construction, and infrastructure development.
The FX89/114 production line features cutting-edge high-frequency welding and automated control systems, ensuring that each pipe produced meets the highest standards of quality and consistency required for industrial applications.
Key Components Overview
The FX89 and FX114 models are equipped with robust components designed to deliver reliable performance in demanding environments:
1. Uncoiler: Ensures stable and consistent uncoiling of steel coils, providing a smooth feed into the production process.
2. Shearing and Welding Unit: Accurately shears and welds the strip edges, creating a seamless and continuous strip for forming.
3. Forming Section: Utilizes advanced roll forming technology to shape the strip into large-diameter pipes with high precision.
4. High-Frequency Welder: Provides consistent, high-quality welds capable of withstanding heavy-duty applications.
5. Sizing Unit: Adjusts the pipe dimensions to meet exact specifications, ensuring consistent quality across the production run.
6. Cutting Saw: Automated cutting systems provide precise cuts tailored to the specific lengths required, reducing material waste.
7. Control System: User-friendly control interface allows operators to easily monitor and adjust the production process, ensuring optimal efficiency.
These components work together to ensure that the FX89 and FX114 models deliver reliable, high-quality performance in large-diameter pipe production.
The FX89/114 models are equipped with reinforced rollers and heavy-duty welding units, designed to handle the demands of producing large-diameter pipes while minimizing maintenance needs and maximizing operational uptime.
Product Advantages
1. Heavy-Duty Construction: Built to withstand the rigors of continuous, high-demand operations, the FX89 and FX114 are ideal for producing robust, large-diameter tubes for critical infrastructure and industrial applications.
2. Precision Engineering: These models feature advanced high-frequency welding technology that ensures strong, consistent welds, even on thick-walled tubes, making them reliable for heavy-duty applications.
3. High Production Capacity: Capable of producing tubes at high speeds, the FX89 and FX114 maximize throughput without sacrificing quality, making them suitable for large-scale production environments.
4. Advanced Control Systems: Both models are equipped with state-of-the-art control systems that allow for precise operation, easy monitoring, and quick adjustments, ensuring consistent production quality.
5. Energy Efficiency: Despite their heavy-duty capabilities, these mills are designed to operate efficiently, minimizing energy consumption and reducing operational costs.
Applications
The FX89 and FX114 models are ideal for producing tubes used in:
1. Oil & Gas Industry: Perfect for manufacturing large-diameter pipes used in oil and gas transportation pipelines where durability and reliability are crucial.
2. Heavy Construction: Suitable for creating structural tubing for bridges, tunnels, and other large-scale infrastructure projects that require high-strength materials.
3. Energy Sector: Ideal for producing tubes used in power plants, including steam and cooling systems, as well as renewable energy structures.
4. Marine Engineering: Suitable for creating pipes and tubes used in shipbuilding, offshore platforms, and other marine applications requiring corrosion resistance.
5. Transportation Infrastructure: Well-suited for producing large-diameter tubes used in the construction of highway bridges, railway overpasses, and airport terminals.
The FX89/114 models are extensively used in the production of large-diameter pipes for the oil and gas industry, including pipelines and drilling infrastructure, as well as in heavy construction for structural supports and large-scale drainage systems.
FAQs
1. What is the maximum wall thickness these mills can handle?
• Both FX89 and FX114 can efficiently process tubes with wall thicknesses up to 4.0mm, ensuring the production of strong and durable tubes for industrial use.
2. How do these models ensure weld quality on thick-walled tubes?
• Equipped with high-powered, high-frequency welding systems, these models provide precise control over the welding process, ensuring deep penetration and strong welds even on thick-walled tubes.
3. What kind of maintenance is required for these heavy-duty models?
• Regular maintenance includes checking the roll tooling alignment, calibrating the welding system, and lubricating moving parts. Annual comprehensive inspections are recommended to maintain optimal performance.
4. Can these mills produce both round and square/rectangular tubes?
• Yes, the FX89 and FX114 can produce both round and square/rectangular tubes, with customizable roll tooling to meet specific production requirements.
5. What support services are available for these models?
• We offer full support services including installation, commissioning, operator training, and ongoing technical support to ensure smooth operation and maximum uptime.
Customer Testimonials
• Customer I: “The FX89 steel tube mill has exceeded our expectations in terms of durability and production efficiency. It’s a robust machine that delivers consistent results.”
• Customer J: “Using the big pipe making machine , we’ve been able to produce large-diameter pipes with excellent weld quality. The machine’s performance and reliability are top-notch.”
Why Choose Us
When you choose our Heavy-Duty Large Pipe Production Lines, you benefit from:
1. Robust Construction: The FX89 and FX114 models are built to handle the rigors of continuous operation in demanding industrial environments, ensuring long-term reliability.
2. Precision Engineering: Our machines provide precise control over every aspect of pipe production, ensuring consistent, high-quality results.
3. Customization Options: We offer tailored solutions to meet your specific production needs, including custom roll tooling and specialized machine configurations.
4. Expert Support: Our team provides comprehensive support from installation to ongoing maintenance, ensuring your production line operates at peak efficiency.
5. Proven Performance: Our production lines are trusted by leading manufacturers worldwide for their durability, reliability, and high performance.
Choosing the FX89 and FX114 models means investing in heavy-duty machines that are engineered to deliver consistent, high-quality pipes for the most demanding applications.
