How to Choose the Right ERW Tube Mill for Your Factory

Choosing the right ERW tube mill for your factory is a practical production decision. The machine must match your target tube sizes, wall thickness, raw material, workshop conditions, budget, operator level, and long-term service needs.

Many buyers first ask for a general tube mill price. That is normal, but price should not be the first and only question. If the machine cannot produce your required tubes steadily, even a low price can become expensive after installation.

This guide explains what overseas steel tube producers, metal processing factories, importers, and purchasing managers should check before buying an ERW tube mill from China.

1. Confirm Your Main Tube Products First

The first step is to list the real tubes your factory plans to produce. A broad range is useful, but exact examples are more important for model selection.

Please prepare tube specifications like these:

• Round tube: 25 mm OD x 1.2 mm wall thickness
• Square tube: 40 x 40 mm x 1.5 mm wall thickness
• Rectangular tube: 40 x 60 mm x 2.0 mm wall thickness

If you have many sizes, separate them into common sizes and occasional sizes. This helps the manufacturer check whether one line can cover your production plan or whether some sizes require another configuration.

2. Do Not Select the Model by Diameter Only

A common mistake is choosing an ERW tube mill only by maximum tube diameter. Wall thickness, material strength, and tube shape also affect forming force, HF welding, sizing stability, cutting load, and roll tooling design.

For example, a medium-diameter tube with heavy wall thickness may require a stronger machine than a larger thin-wall tube. This is why XFX always asks buyers for both tube size and corresponding wall thickness.

3. Compare Reference Model Ranges Carefully

The following XFX model ranges are for reference only. Final model selection should be confirmed according to your actual tube specifications, material, and required configuration.

Do not assume one model is suitable for all sizes inside the reference range. The final recommendation depends on real tube size, wall thickness, material, speed requirement, and machine configuration.

4. Choose the Right Cutting System

The cutting section affects finished tube quality, noise, burr condition, and production cost. Common choices include hot friction saw cutting and cold saw cutting.

A cold saw cutting machine is often selected when buyers need better cutting quality and more stable tube ends. A hot friction saw can be suitable for some production needs where the buyer accepts a different cutting finish. The best choice depends on tube size, wall thickness, speed, budget, and downstream use.

5. Check the HF Welder and Auxiliary Equipment

An ERW tube mill is not only the forming machine. The complete line may include uncoiler, shearing and butt welding, accumulator, forming section, high frequency welding, sizing section, cutting section, run-out table, and packing or stacking options.

Depending on your production plan, you may also need:

• Hydraulic uncoiler for heavier coils
• Horizontal or vertical accumulator for continuous production
• Solid-state HF welder selected by tube size, wall thickness, material, and speed
• Zinc spraying machine for GI pipe weld seam protection
• Slitting line or cut to length line for coil preparation
• Automatic packing or stacking system

6. Check Installation, Training and After-Sales Support

For overseas buyers, service is part of the real machine cost. Before confirming an order, ask how the supplier supports installation guidance, operator training, remote troubleshooting, spare parts, and long-term maintenance.

XFX supports buyers with model selection, production follow-up, installation guidance, operator training, remote technical support, spare parts, and long-term after-sales service according to the project requirements.

7. Supplier Checklist Before You Buy

• Is the supplier a real factory or only a trading company?
• Can they explain why a specific model is recommended?
• Do they ask for exact tube size and wall thickness?
• Can they provide a complete line configuration, not only a machine name?
• Do they support installation guidance and operator training?
• Can they supply spare parts after delivery?
• Do they avoid unrealistic promises such as one machine producing every possible size?

FAQ

What is the most important information for choosing an ERW tube mill?

The most important information is exact tube shape, tube size, wall thickness, raw material, and expected production requirement. These details help the manufacturer select the suitable model and configuration.

Can I get a price if I only know the tube size range?

You may get a rough reference, but it is not enough for an accurate quotation. Please provide several real production sizes with matching wall thickness for better model selection.

Is a larger model always better?

No. A larger model may cost more and may not be the best choice for your main production sizes. The right model should match your normal products, not only the largest possible size.

Can XFX customize the tube mill line?

Yes. XFX can provide custom tube mill solutions based on tube size, wall thickness, material, workshop layout, cutting requirement, and auxiliary equipment needs.

Request a Tube Mill Solution

To help XFX recommend the right ERW tube mill for your factory, please send:

• Tube shape: round, square, or rectangular
• Exact tube size and wall thickness
• Raw material
• Country and workshop plan
• Purchase time
• WhatsApp or email
• Company name

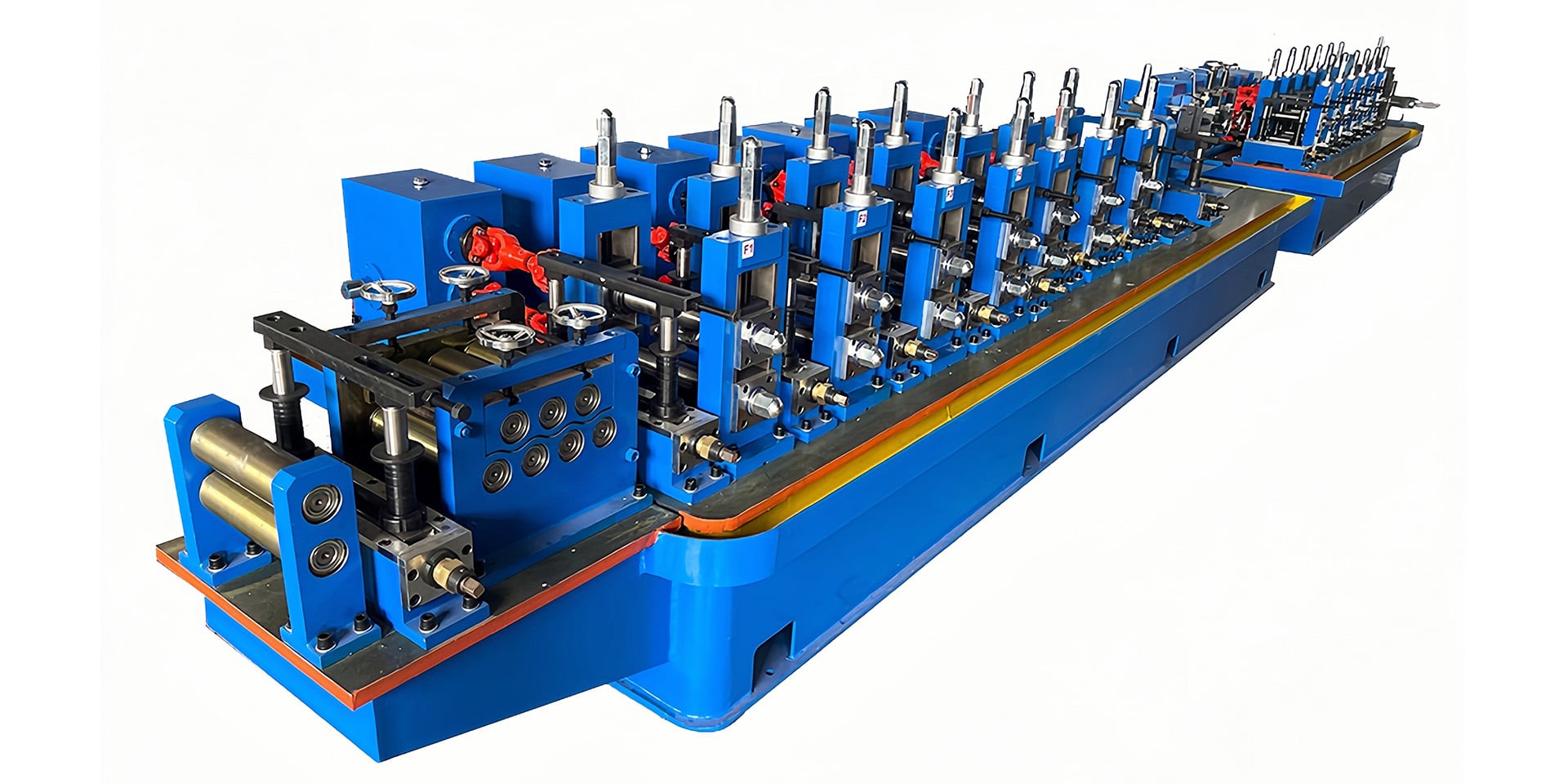

View our high frequency welded tube mill machines, compare FX45 and FX50 tube mill options, or contact XFX for a tube mill quote.
