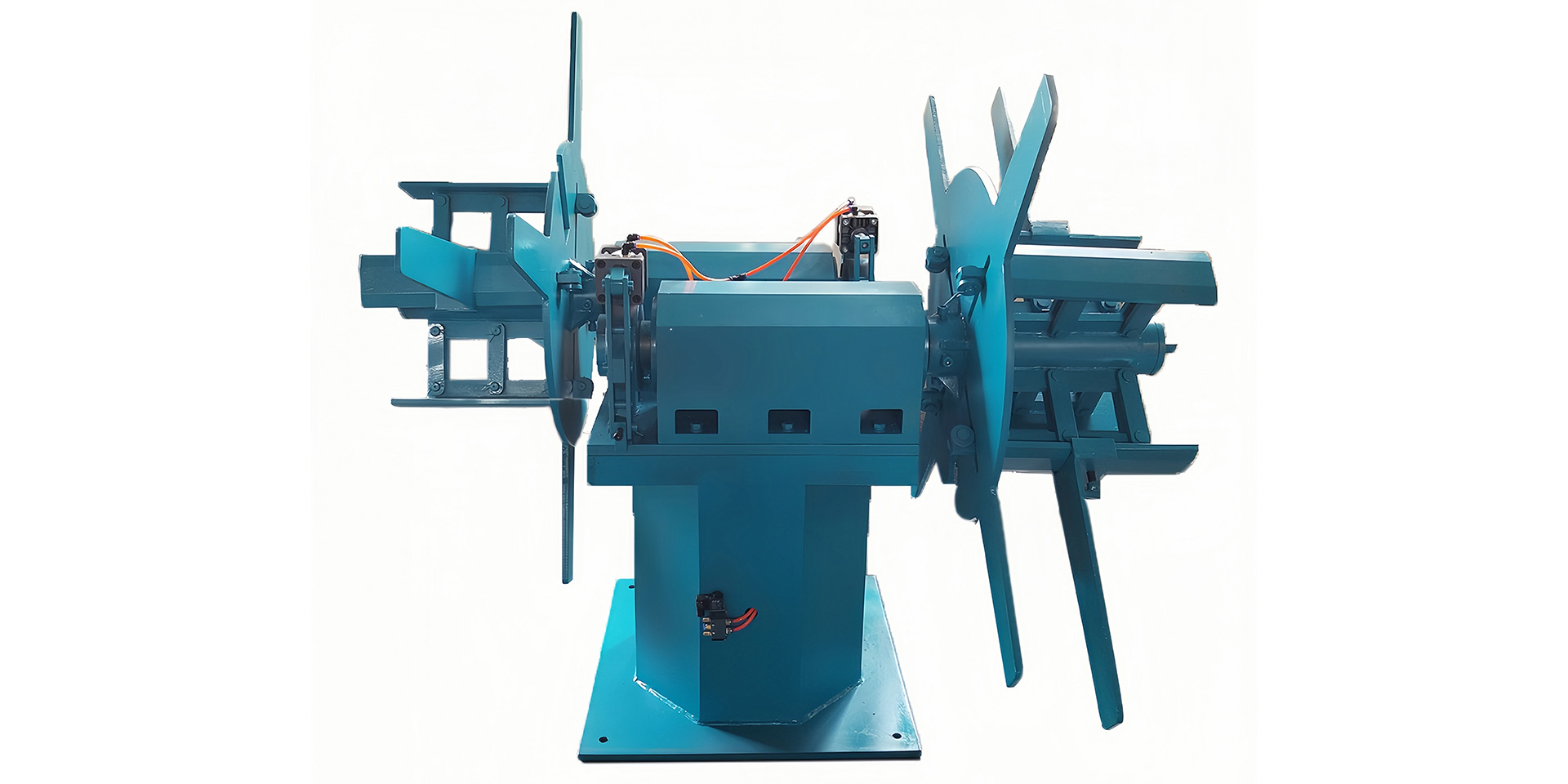

MANUAL MECHANICAL
Discuss a simpler entry arrangement.
A manual mechanical arrangement may be discussed for a simpler line or lower automation requirement. Suitability still depends on the actual coil and line.
COIL ENTRY FOR ERW TUBE MILLS
Material Uncoiler for ERW Tube Mill Lines
At the entry of a tube mill, the uncoiler holds a steel coil and supplies strip to the next process. Discuss an uncoiler for a new line, or send details of an existing machine you plan to replace or upgrade.
Configuration is reviewed against your coil, strip, line and entry-section requirements. You can start with partial information.
01 / COIL ENTRY
What does the uncoiler do?
An uncoiler holds the steel coil and feeds strip into the entry section. The entry sequence continues toward shearing and butt welding, the accumulator and the forming section. Their arrangement and interface need to be reviewed with the planned line.
The uncoiler may be discussed with a complete ERW tube mill or as auxiliary equipment for an existing line. Mentioning downstream machines here does not mean they are included in an uncoiler quotation.
02 / TYPES SHOWN BY XFX
Manual mechanical, pneumatic and hydraulic.
XFX shows these three types. Their operating limits and suitability depend on your coil and line requirements.

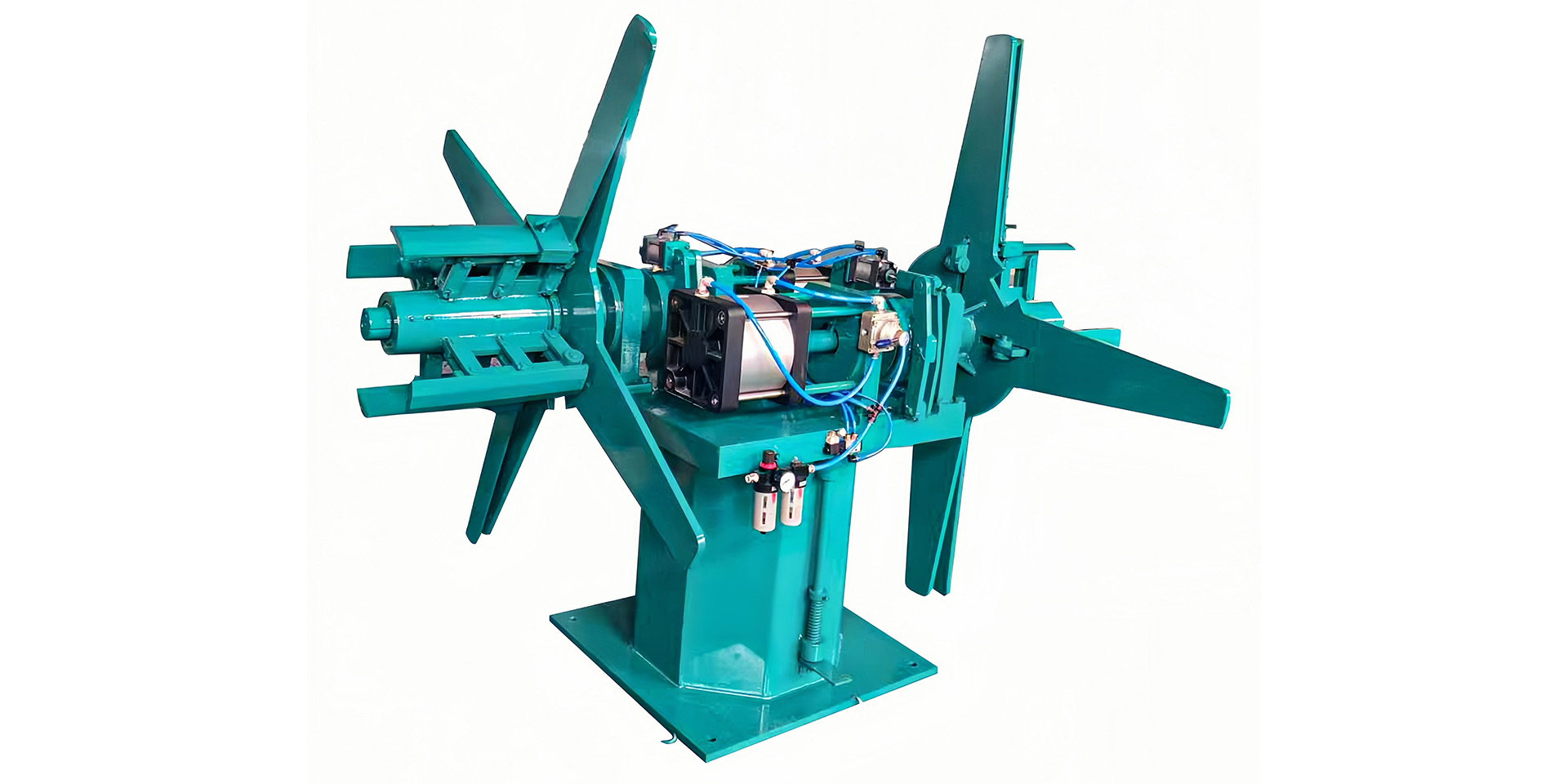

PNEUMATIC
Review a pneumatic option.
A pneumatic arrangement may be discussed where more control of expansion and feeding is required than with a manual type. Confirm its proposed functions and interfaces for your project.

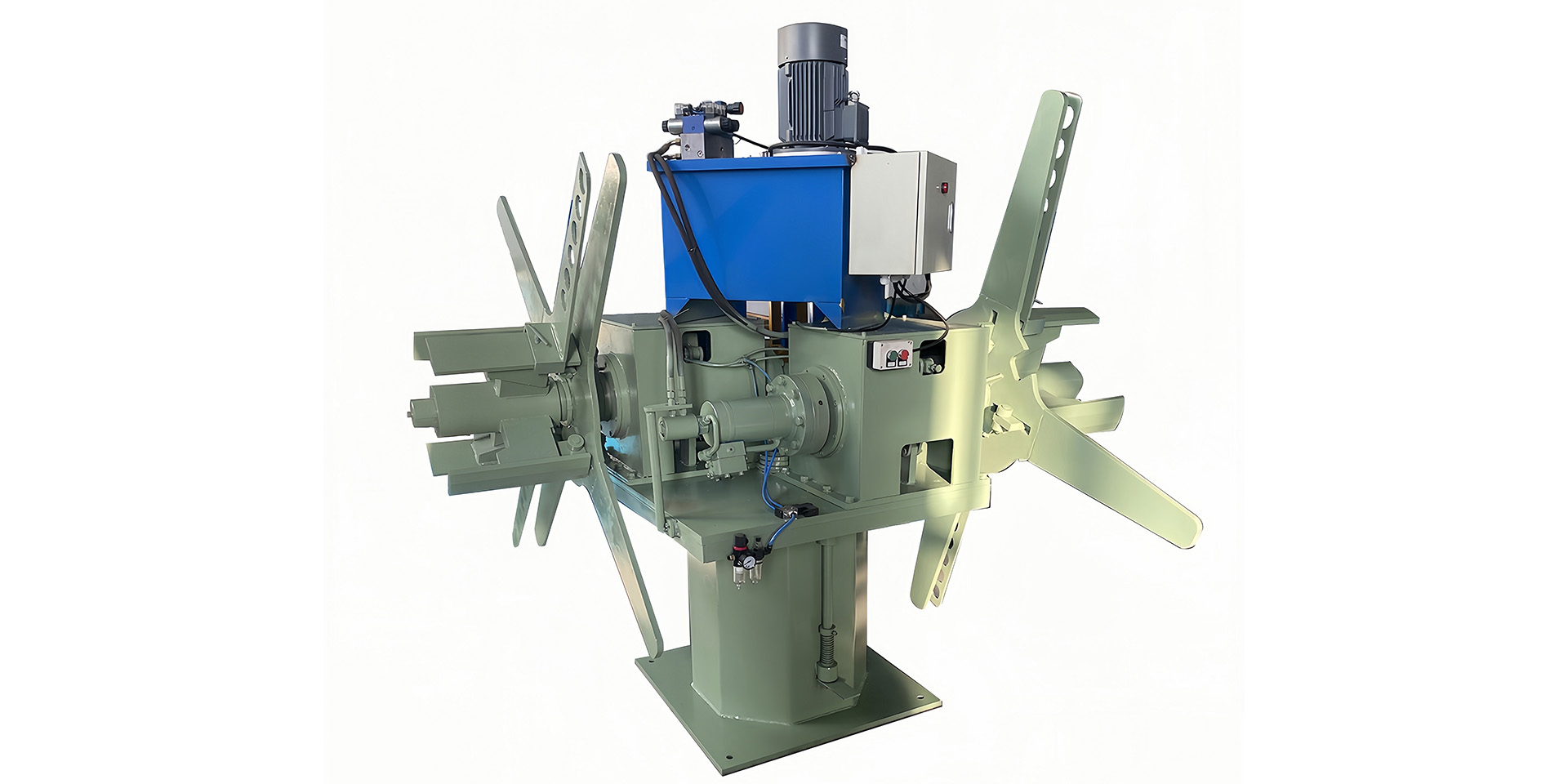

HYDRAULIC
Review a hydraulic option.
A hydraulic arrangement may be discussed for heavier-coil or larger-line requirements. Its rated load and suitability must be confirmed for the project.
Ask XFX to confirm the proposed type, its supported coil and strip values, and relevant operating limits in the project quotation.
03 / SELECTION INFORMATION
Send the coil and strip data together.
These values are needed for technical review. Missing details need not delay your first message; tell us what you know and what remains to be checked.
Coil weight
Maximum coil weight you intend to handle.
Coil inner diameter
Actual inner diameter of the supplied coils.
Coil outer diameter
Actual outer diameter or supplier drawing.
Strip width
Widths used for the planned tube products.
Strip thickness
Match thickness to each strip width or product.
Material
Steel grade or material description if known.
Also share the tube mill model or intended tube range, target line speed or output if known, loading preference, workshop space and line direction. Coil weight by itself cannot confirm a suitable uncoiler.
04 / TWO BUYER ROUTES
Planning a new line or changing an existing entry section?
Coordinate the new line from coil entry.
Tell us the intended mill model or tube range, material, coil weight and diameters, strip width and thickness, target output if known, preferred loading method, workshop layout, electrical supply where relevant and destination country.
We can discuss the uncoiler alongside shearing and welding, the accumulator and the tube mill. Their supply scope is itemized in the proposal.
Discuss a new line ↗Start with the machine you have.
Share current mill and uncoiler type or model, coil and strip data, line direction, drive or hydraulic information if known, installation-space dimensions, mandrel or interface details, and the problem you want to solve. Photos of the machine and surrounding entry area help.
Dimensions, interfaces, loading method and control or hydraulic requirements must be reviewed before a replacement solution is confirmed. No direct fit is assumed.
Send existing-machine details ↗05 / ENTRY-SECTION COORDINATION
Review the next process without assuming it is included.
At the beginning of an ERW line, the coil-entry arrangement may need to connect with shearing and butt welding, strip accumulation and forming. Confirm mechanical, control and layout interfaces for the actual project.
06 / QUOTATION REVIEW
Clarify the exact uncoiler scope.
Use this as a buyer checklist. These items are not standard inclusions in every quotation.
Machine and coilType proposed and the coil/strip values that proposal supports.
Loading and expansionProposed loading method, expansion arrangement and relevant operating limits.
Drive, hydraulics and controlsWhich functions and interfaces are actually supplied, where applicable.
Safety and entry interfaceGuarding, layout, handoff to downstream equipment and buyer-side preparations.
Documents and sparesRequired operation/maintenance materials and spare-parts scope.
ServiceInstallation, commissioning and training arrangements for the project.
The final proposal defines what is supplied, excluded or separately charged. Confirm all operating limits and service terms in the project proposal.
07 / FACTORY & SUPPORT
Discuss coil-entry requirements with XFX.
XFX has its own factory in China. For a project, XFX can provide on-site installation and commissioning, operator training, remote technical support, operation and maintenance documentation, and spare-parts support.
Overseas on-site arrangements and costs are confirmed in the individual proposal. This page does not promise a fixed installation period, response time or service price.
Contact XFX ↗
08 / BUYER QUESTIONS
Material Uncoiler questions
What does an uncoiler do in an ERW tube mill?
It holds the steel coil and supplies strip into the entry process. The XFX page places shearing and butt welding, accumulation and forming downstream.
What coil information should I send?
Send maximum coil weight, inner and outer diameters, strip width and matching thickness, and material. Add mill and layout information where known; partial details are enough to start a discussion.
Which uncoiler types does XFX show?
The current English product page shows manual mechanical, pneumatic and hydraulic uncoilers. A type and its limits must be confirmed against your coil and line requirements.
Can XFX discuss replacing an existing uncoiler?
Yes. Send machine and entry-section photos, available dimensions and interfaces, coil/strip data, and the issue or upgrade objective. Compatibility is reviewed before a solution is confirmed.
Is coil weight enough to select a type?
No. Coil diameters, strip dimensions, material, line requirements, loading method and layout also matter.
Is an uncoiler included in every tube mill quotation?
Do not assume so. Ask the supplier to list the uncoiler and all downstream equipment included in the specific proposal.
What support can XFX provide?
Project-specific arrangements can include on-site installation and commissioning, operator training, remote support, operation and maintenance documentation, and spare parts. Confirm scope and overseas costs in the proposal.
09 / DISCUSS YOUR UNCOILER
Send coil data or photos of your existing entry section.
Tell us if this is a new tube mill or an existing-line replacement. Share the coil and strip values you have; if you are replacing a machine, add photos and available interface details. You can begin before every item is known.
View the Contact page ↗SEND AN INQUIRY
Send Your Uncoiler Requirements
Use the message field for your coil and strip details, and say whether you need equipment for a new line or an existing installation.
