Solid-state HF welding power supply
Used in the ERW seam-welding section of a tube mill or pipe-making line.
ERW SEAM-WELDING EQUIPMENT
Solid-State High-Frequency Welder
Review HF welding equipment for a new ERW tube mill or a replacement on an existing line. XFX will discuss the power supply and matching configuration against your real tube schedule, production target and available utilities.
Compatibility and final equipment scope are confirmed for each project, not from a power label alone.
01 / PRODUCT ROLE
Welding power for the formed tube seam.
The solid-state HF welder supplies high-frequency electrical energy used to heat and join the formed strip edges in an ERW tube mill. It works with the line's forming and welding section; it is one part of the complete tube-making system.
The suitable welding configuration depends on the planned tube sizes and matching wall thicknesses, material, desired production speed and the rest of the line arrangement. An existing line also needs a compatibility review before a replacement is specified.
02 / TECHNICAL REVIEW
Define the HF welder configuration for your line.
Review the welding equipment alongside your tube schedule and site utilities. The proposal should confirm the actual rating and supplied components for your project.
Tube schedule and operating plan
Review tube size, paired wall thickness, raw material, production speed, seam requirement and complete line configuration.

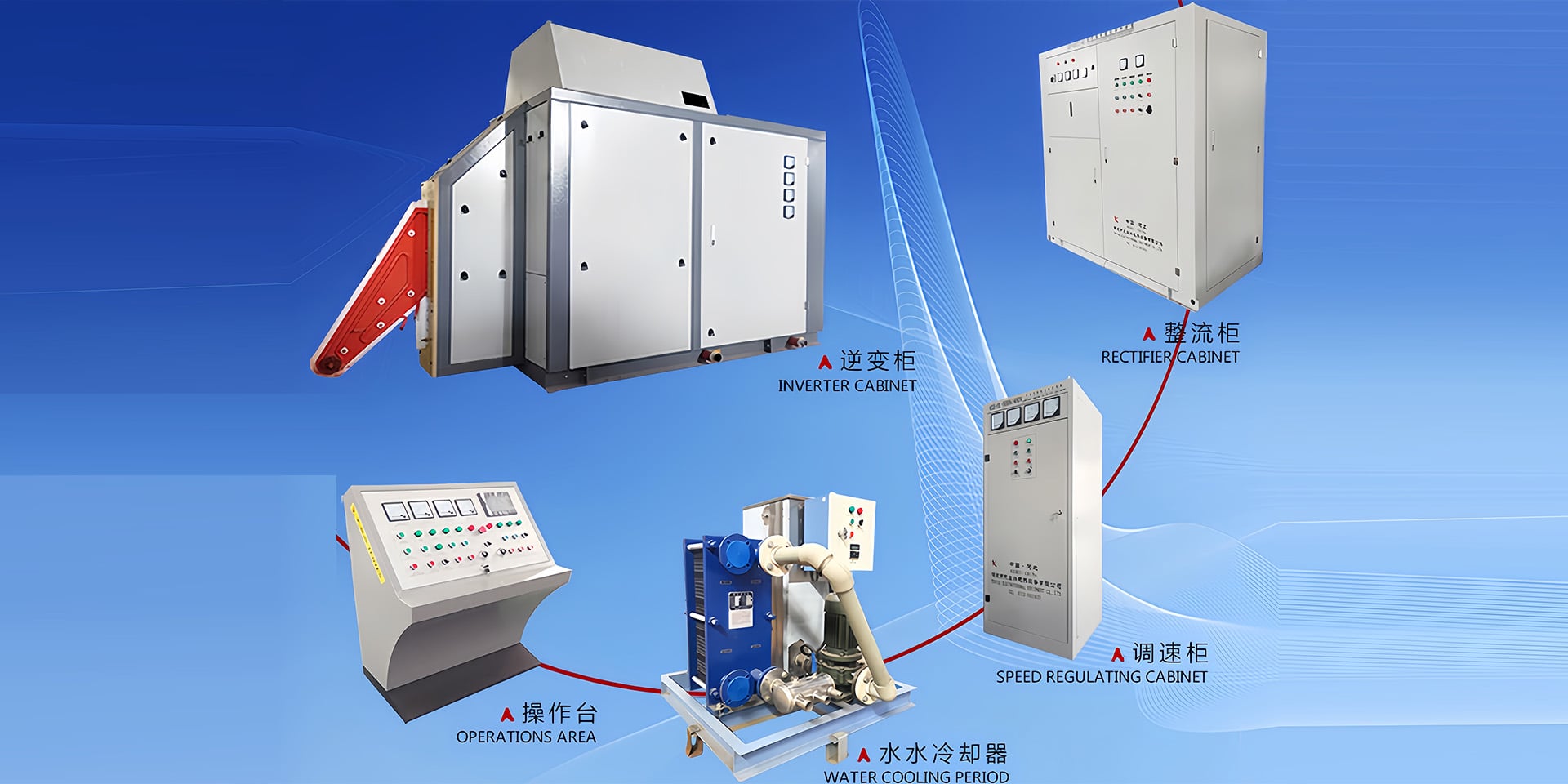

Controls, welding components and cooling
The source discusses a control interface, induction coil and related components, plus cooling and protection according to project requirements. Confirm each supplied item in the quotation.
A power figure alone does not establish suitability. Confirm the proposed rating, electrical supply, frequency and cooling requirements in the project quotation.
03 / PROJECT SELECTION
Match the welder to the tube project.
A practical recommendation starts with the production schedule and the line. More nominal power is not automatically a better match.
01
Define the tube mix
List round, square or rectangular shapes and each exact size with its corresponding wall thickness and material.
02
Review the operating target
Share the desired line speed or output and any weld-seam requirement. These are project inputs, not guaranteed operating results.
03
Check the line and utilities
Confirm the tube mill model or layout, available electrical supply and relevant cooling or workshop conditions before selecting a configuration.
04 / TWO TYPES OF PROJECT
What to send XFX.
Send the information you already have. Missing details can be identified during the first discussion.
Planning a complete tube mill?
- Tube shape and each exact size with matching wall thickness
- Raw material or steel grade
- Target production speed or output
- Available electrical supply and destination country
- Any known cooling and workshop constraints
Replacing or upgrading a welder?
- Current tube mill model and tube schedule
- Existing HF welder brand, model and power, if known
- Current line speed and electrical supply
- Photos of the welder and production line
- Control/electrical details and fault description, if available
Compatibility must be checked before a replacement solution is confirmed.
05 / QUOTATION SCOPE
Confirm what the HF welder offer actually includes.
An HF welder quotation should specify the proposed product configuration and the boundaries between the welder, existing equipment and complete tube mill line.
Welder and controlsConfirm the proposed power supply, control interface and integration work.
Welding componentsClarify any induction coil, related components and spare-parts scope.
Utilities and protectionConfirm electrical supply, cooling and protection needs for the installation.
ServicesAgree commissioning, training and after-delivery support in the proposal.
These are quotation topics, not a list of components automatically included with every HF welder. Related replacement parts: Induction Coils and Magnetic Bars; check each part separately for the actual HF setup.
06 / FACTORY & SUPPORT
Discuss your welding section with XFX.
XFX has its own factory in China. We can provide on-site installation and commissioning, operator training, remote technical support, operation and maintenance documents, and spare-parts support.
Service details remain project-specific. For overseas installation, the customer is responsible for installation personnel's visas, international travel, accommodation, meals and wages during the installation period.
Contact XFX about support
07 / BUYER QUESTIONS
HF welder buying questions
What is a solid-state HF welder used for?
It supplies high-frequency welding energy for the formed strip edges in the longitudinal seam-welding section of an ERW tube mill.
Is a higher power rating always better?
No rating should be chosen from the number alone. XFX needs the exact tube sizes, paired wall thicknesses, material, intended speed and line configuration before discussing a suitable welder.
Can XFX discuss a welder for my existing tube mill?
Yes. Send the current tube mill and welder details, tube schedule, electrical information and photos. Compatibility must be checked before a replacement or upgrade is confirmed.
Does the HF welder quotation include coils, cooling and spare parts?
Do not assume a fixed package. The proposed induction coil, cooling/protection arrangement, spare parts and integration work should be stated in the project quotation.
Can I discuss the welder together with a complete tube mill?
Yes. XFX's existing product page describes HF welder supply for new tube mill lines as well as existing-line replacement discussions. The complete equipment scope is confirmed in the proposal.
08 / DISCUSS YOUR PROJECT
Send your tube and welder details.
For a new line, send each tube size with its matching wall thickness, material, intended output and electrical supply. For an existing line, add its current welder and tube mill information. Partial details are welcome for a first discussion.
View other tube mill equipmentSEND AN INQUIRY
Send Your Project Details
Start with the information you have. Describe the new line or the existing welder that needs replacement in your message.
