TUBE MILL TRANSMISSION SPARES

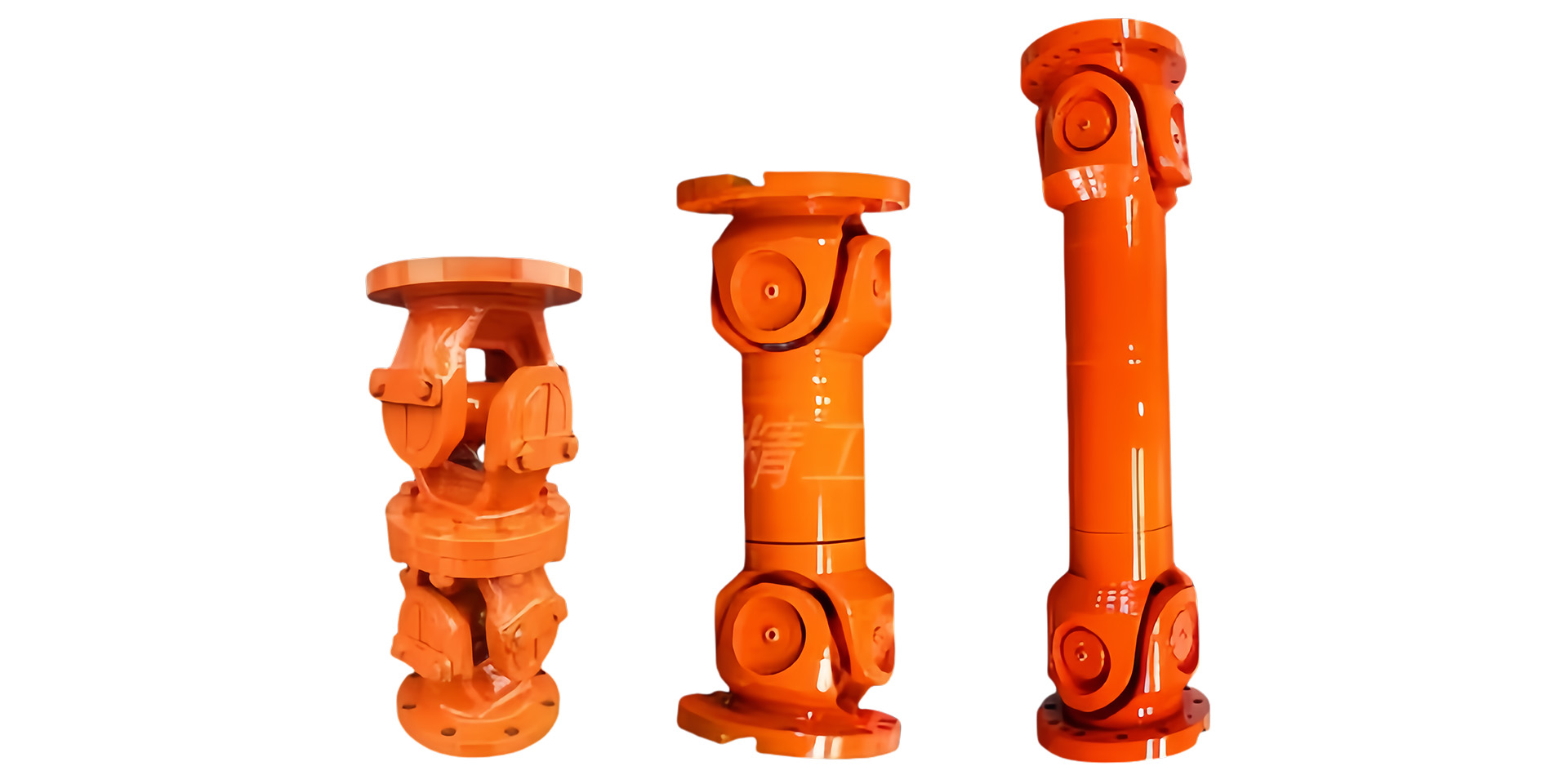

XFX lists this Transmission Shaft as connecting gearbox and roll stand in a tube mill. Send the old shaft, both connection ends, its installed position and a drawing or measurements so XFX can review your replacement enquiry.
A tube mill model or one photo cannot establish the correct shaft on its own.
01 / PRODUCT IDENTITY
XFX describes Transmission Shafts as connecting gearboxes and roll stands, including related drive components, in tube mill forming and sizing sections. It does not publish an engineering drawing defining every shaft variant.
XFX has a separate Horizontal Shaft listing associated with roll stands and roll tooling installation. The names identify different XFX listings, but the exact old part and installed position must still be checked.
02 / IDENTIFICATION CHECKLIST
Start with the information you have. The original drawing or an old sample may be needed before a replacement is confirmed.
These are buyer-supplied identification details, not published XFX product specifications. Send drawings or photos by WhatsApp or email; the text form below has no file upload.
03 / EXISTING-MACHINE ROUTES
Send the original line model and project information if known, machine section and installed position, old-shaft and both-end photos, part marking, drawing or measured dimensions, mating gearbox and stand information and quantity. The model alone may not identify the correct shaft.
Discuss an XFX replacement ↗Provide the maker and model if known, gearbox information, installed-position and both-end photos, connection details, drawing or measured dimensions, mating components, sample availability and quantity. XFX can review an enquiry; supply or fit is not promised from photos alone.
Send existing-shaft details ↗04 / FIT & CONDITION
The actual length, end connections, any keyway and the gearbox- and stand-side interfaces must be checked where relevant. A machine brand, model or single photo cannot establish interchangeability. The original drawing or a reliable sample may be needed before fit is confirmed.
If a shaft is worn, loose, bent, broken, noisy or vibrating, describe the condition and share photos. The shaft, connections, gearbox, bearings, stand alignment and surrounding drive components may need to be reviewed together. Replacing the shaft alone is not a guaranteed fix.
05 / BUYER QUESTIONS
XFX describes a part connecting gearbox and roll stand in tube mill forming or sizing. The actual shaft version must be identified from the old part and installation.
XFX lists Horizontal Shaft separately for a roll-stand and tooling role. The source descriptions are not complete engineering definitions, so do not assume the parts are interchangeable.
No universal fit is stated. Both ends, overall geometry and mating gearbox and stand interfaces must be reviewed for the actual machine.
It is a starting point. Please also send the old shaft, its installed position, both ends and a drawing or reliable measurements where available.
You may send the machine and old-part information for review. Manufacture or compatibility cannot be confirmed from a brand name or one photograph.
Not necessarily. Connections, gearbox, bearings, alignment and other drive components may need review together.
06 / DISCUSS A REPLACEMENT
Start with the machine and installed position, full-part and both-end photos, drawing or measurements and required quantity. Tell XFX whether the machine was supplied by XFX or another maker.
View the Contact page ↗SEND AN INQUIRY
Describe the line, gearbox and roll-stand position, old shaft, both ends, drawing or measured dimensions, mating components and quantity. Send photos or a drawing separately by WhatsApp or email; this text form has no file upload.
