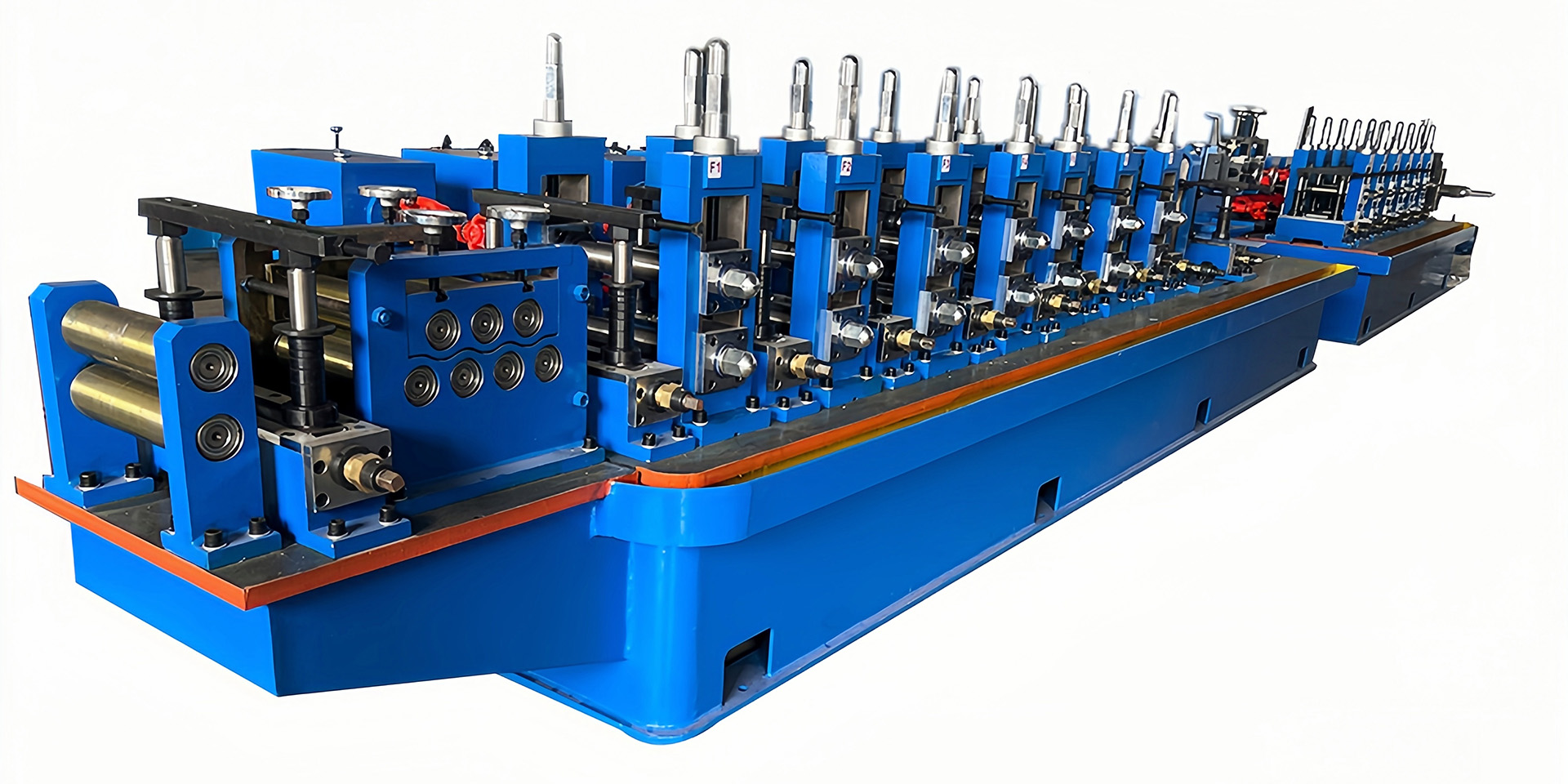

25-102mm Medium Tube Making Machines - FX60 & FX76

Product Overview

The FX60 and FX76 ERW tube mills are designed for buyers who need stable production of medium-to-large welded steel tubes. These tube mill lines can be configured for round tube, square tube, and rectangular tube production, depending on the tube sizes, wall thicknesses, raw material, and required machine configuration.

For accurate model selection, please do not send only a general range. A useful inquiry should include exact tube specifications, for example round tube Φ60mm × 2.0mm, square tube 60×60mm × 2.5mm, or rectangular tube 40×80mm × 2.0mm.

Applications

• Construction and building material tubes
• Structural steel tubes and general fabrication tubes
• Warehouse racks, frames, and support structures
• Greenhouse and agricultural structure tubes
• Round, square, and rectangular welded steel tubes
• Square tube mill machine selection guide

Tube Shapes and Reference Range

The FX60 and FX76 tube mill machines can be configured for round tube, square tube, and rectangular tube production. The reference ranges are shown in the technical table on this page. Final selection should depend on the exact tube size, wall thickness, raw material, forming method, welding power, cutting method, and automation level.

• FX60 reference range: round tube Φ25-89mm, thickness 0.8-3.5mm
• FX76 reference range: round tube Φ38-102mm, thickness 1.0-4.0mm

Model Selection Guidance

FX60 and FX76 may both cover some similar tube requirements, but that does not mean one model is always suitable for every specification. Wall thickness, tube shape, steel grade, welding power, roll tooling plan, and cutting method all affect the final recommendation.

Please send your main production list with tube shape, tube size, wall thickness, raw material, country, and expected purchase time. XFX engineers will check whether FX60, FX76, or another tube mill model is more suitable for your project.

Production Process

A typical ERW tube mill line includes uncoiler, shearing and butt welding, accumulator, forming section, high frequency welding, sizing section, cutting section, run-out table, and packing or stacking. The final layout can be customized according to workshop space, coil width, tube range, and production plan.

Main Machine Configuration

• Uncoiler for steel coil loading
• Shearing and butt welding unit for strip connection
• Accumulator for continuous strip feeding
• Forming section for tube shaping
• High frequency welding system for weld seam forming
• Sizing section for final tube dimension control
• Cutting section with hot saw or cold saw option
• Run-out table and optional packing system

Optional Configuration

• Cold saw cutting machine for cleaner cutting surface
• Hot friction saw cutting machine
• Horizontal or vertical accumulator
• Hydraulic uncoiler
• Zinc spraying machine for GI pipe weld seam
• Automatic packing system
• Slitting line and cut to length line

Customer Pain Points and XFX Solution

Many overseas buyers worry about buying a tube mill that cannot produce their target tube sizes. This risk is often caused by checking only the diameter range and ignoring the matching wall thickness. XFX helps you review the tube size and wall thickness together before quotation, so the machine configuration can match your real production needs.

XFX Tube Mill Machinery is a real tube mill machinery factory in Yangzhou, China. We provide factory direct supply, custom tube mill solutions, installation and operator training, remote technical support, spare parts support, OEM and ODM service, and long-term after-sales service.

FAQ

Can FX60 and FX76 produce square and rectangular tubes?

Yes. The line can be configured for round, square, and rectangular tube production. Please send the exact tube sizes and wall thicknesses so we can check the correct model and roll tooling plan.

How do I choose between FX60 and FX76?

Please provide your main tube specifications, such as Φ76mm × 2.5mm or 80×80mm × 2.0mm. We will compare your requirements with the model range and recommend a suitable configuration.

Can I choose cold saw cutting for this tube mill?

Yes. Cold saw cutting can be selected when you need better cutting quality and a cleaner tube end. Hot friction saw is also available depending on your production requirement and budget.

Do you provide installation and training overseas?

Yes. XFX can provide on-site installation guidance, operator training, remote technical support, and spare parts support after delivery.

What information is needed for a quotation?

Please send tube shape, exact tube size, wall thickness, raw material, country, expected purchase time, and your WhatsApp or email. Specific tube specifications help us quote more accurately.

Request a Quote

Send your tube sizes and wall thicknesses to XFX. We will help you check the suitable ERW tube mill model and prepare a practical tube mill solution for your project.

Contact XFX for a Tube Mill Solution

Related Products and Buyer Guides

If you are comparing tube mill models, these pages can help you check the complete production line and prepare a clearer inquiry.

• High frequency welded tube mill machines
• Tube mill auxiliary equipment
• Cold saw and hot friction saw for tube mill
• Solid-state HF welder for ERW tube mill
• What information is needed for a tube mill quote?
• What affects tube mill machine price?
• Tube mill model selection guide
• Tube mill installation and operator training guide
• Tube mill maintenance guide
• Common tube mill problems and solutions
• Round, square and rectangular tube production guide
• ERW tube mill for Africa buyer guide
• ERW tube mill for Middle East and Southeast Asia guide
• ERW tube mill for South America buyer checklist
• Tube mill for South Asia and Central Asia project guide
• Tube mill manufacturer in China buyer guide
• Reliable ERW tube mill supplier selection guide
• ERW tube mill vs pipe making machine guide
• Factory direct tube mill machine from China guide
• Complete ERW tube mill line configuration guide
• Tube mill quotation checklist

To get a practical recommendation, send your tube shape, exact tube size, wall thickness, raw material, country, and WhatsApp or email to XFX.

The FX60/76 models are built to handle the demands of producing thick-walled tubes with precision, ensuring they meet the stringent requirements for applications such as oil and gas pipelines, heavy machinery, and power generation infrastructure.
